Radio Frequency Fixture
High-performance Radio Frequency (RF) fixture kits engineered for superior signal isolation and interference-free testing. Featuring up to 80 dB shielding and a 400 MHz to 6 GHz frequency range, these customizable, ESD-safe chambers provide a robust environment for precise wireless electronics validation.

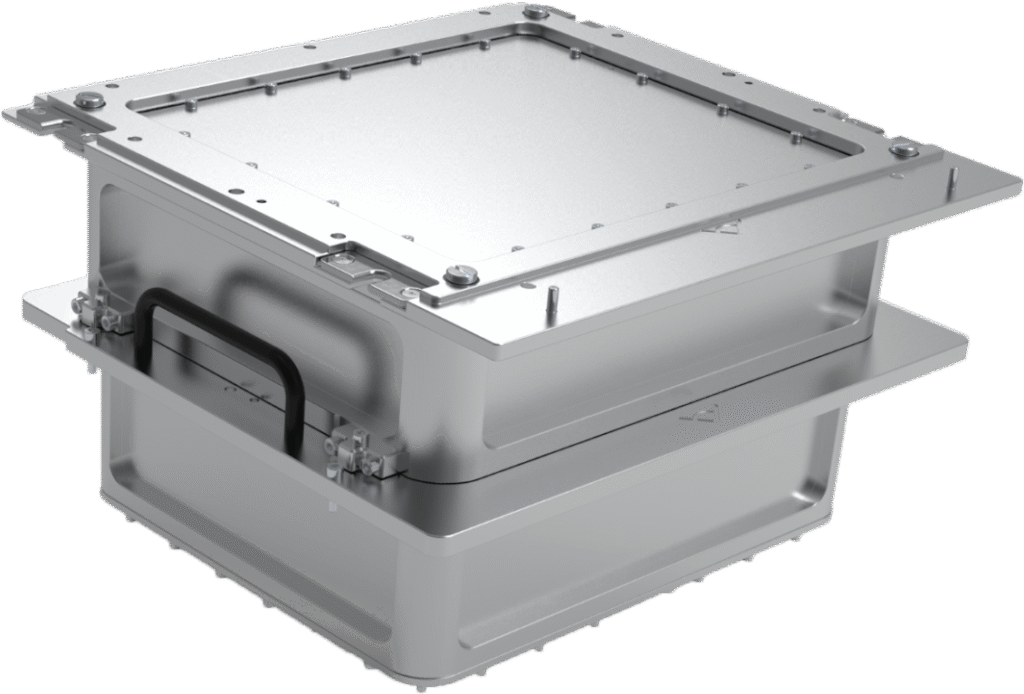

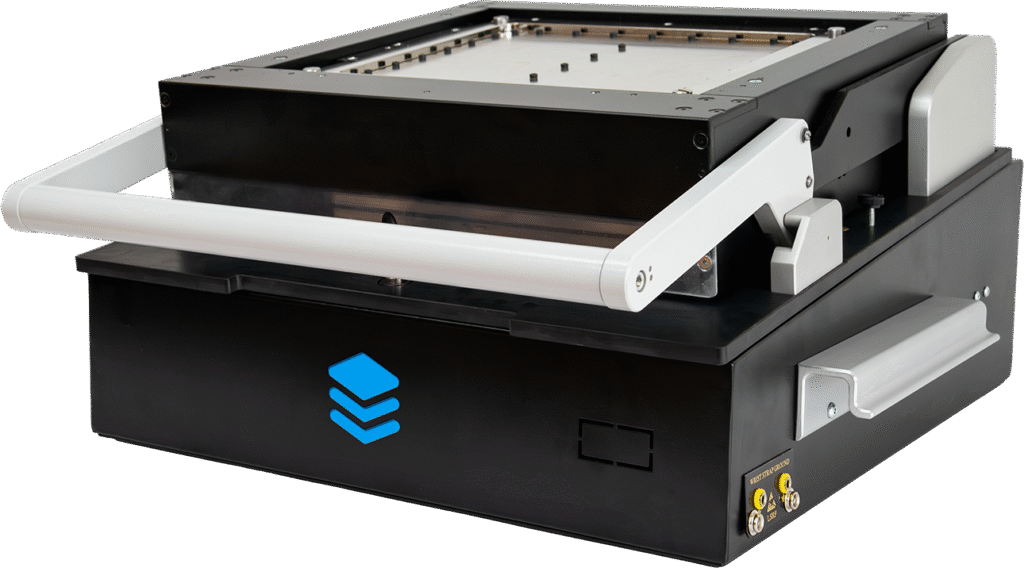

ND-MFS-D3-RF
Its primary function is to block external radio signals and prevent internal signals from leaking out, a capability supported by a shielding attenuation of at least 80 dB. The chamber is built from a solid aluminum block with reliable overlapping seams for robust RF performance and is qualified to operate across a wide frequency range from 400 MHz to 6 GHz. It is designed for ease of use, with a fully removable bottom plate for wiring and a large, customizable cabling access plate. The chamber can also be expanded and features rounded side corners and an optional internal absorber to minimize internal RF reflections.
- Measured shielding attenuation of at least 80 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
- Solid and reliable construction from a solid aluminum block
- Fully removable bottom plate allows easy and effective wiring
- Reliable overlapping seams on all permanent interconnections
- Rounded side corners for better RF reflection characteristics
- Expandable chamber to extend the RF environment
- Large cabling access plate, removable and easy to customize
- Optional internal absorber to reduce internal reflections
Fill out the form
to download the datasheet
Datasheet is ready to download

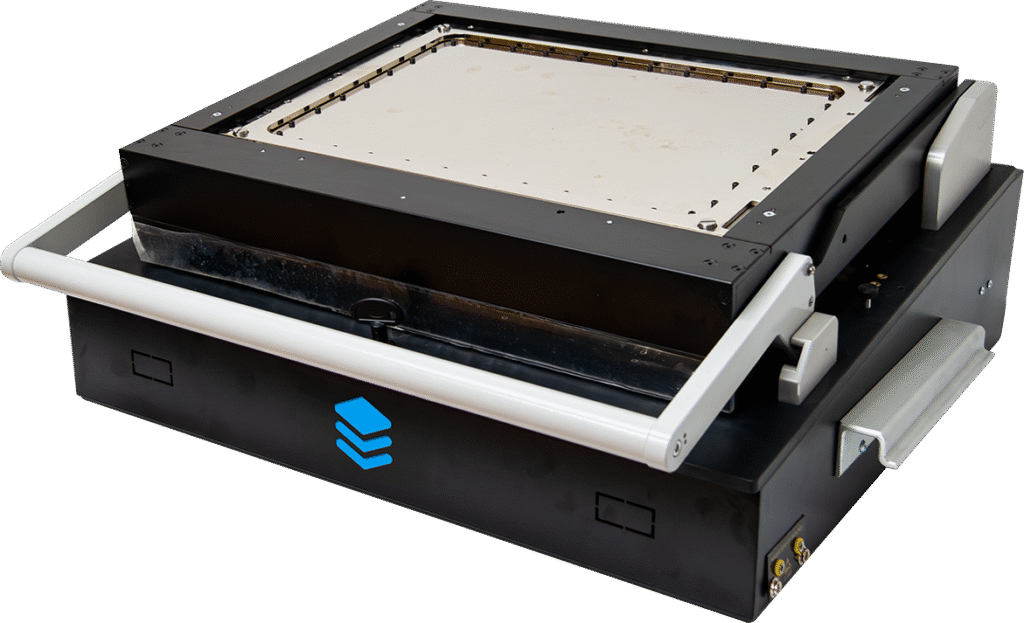

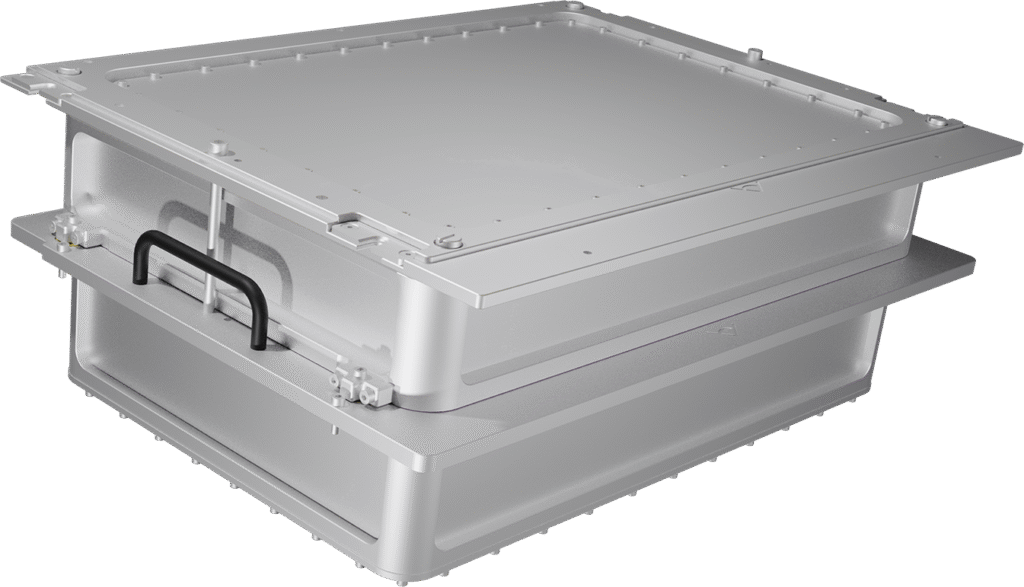

ND-MFS-D4-RF
Its key features are a high level of signal isolation, with a measured shielding attenuation of at least 75 dB, and a wide operating frequency range of 400 MHz to 6 GHz, which covers all common RF bands. Designed for practicality, the chamber is also ESD safe, protecting sensitive electronics, and features Alum-A-Grip Handles for easy transport and handling, making it a reliable and user-friendly tool.
- External Dimension (width x depth x height) with Handles:
-
729 x 656 x 280 [mm]
28.701 x 25.827 x 11.024 [in] - Usable Area:
-
325 x 206 [mm]
12.795 x 8.110 [in] - Measured shielding attenuation of at least 75 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
- ESD Safe & Easy Maintenance
- Alum-A-Grip Handles for transport and lift
