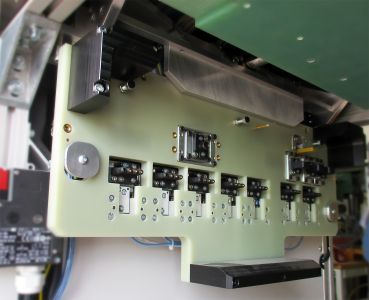

End of Line Fixtures
Ensure every unit meets your exact specifications. Our custom EOL fixtures provide seamless power-up, flash programming, and functional validation for PCBA, automotive, and AI hardware.
Precision Functional Validation for Final Assembly
End-of-Line (EOL) test fixtures are custom-designed tools used to verify that fully assembled products meet their functional specifications. These customized fixtures are placed at the very end of electronic and electromechanical assembly lines to validate components such as PCBAs, motors, connectors, and user interfaces once the Unit Under Test (UUT) is fully assembled.
Main steps of these EOL Test Fixture verifications are:
- Powering up devices
- Programming the device under test (DUT)
- Testing Functionally (Functional Test)
- Data Logging of results for quality assurance and traceability
Precitronic manufactures EOL Test Fixtures that integrate these complex specifications into a single, cohesive system. Depending on customer requirements, these fixtures can be operated via mechanical, vacuum, pneumatic, or electrical actuation.
Key aspects of EOL Test Fixtures:
- Functionality – These fixtures are used for Functional Circuit Tests (FCT), where the product is powered on to simulate real-world usage.
- Key Features – Common features include semi of fully - automatic clamping,connecting with spring loaded test probes, data acquisition for measured parameters like torque, vibration, flash programming, barcode scanning for automatic test program selection. ESD-compliant materials are expectations Precitronic takes into consideration already at engineering design phase.
- Applications – They are used across various industries, such as automotive (motor testing), consumer electronics (cameras, IoT devices), industrial machinery (control panel testing), EV and battery testing, AI boards testing with cooling solutions.
- Benefits – Implementing EOL fixtures improves quality control, reduces manufacturing risks, and ensures faster, more reliable testing. This results in securely tested products that enhance the global brand reputation of OEM manufacturers.
By choosing Precitronic, you benefit from custom-designed solutions that utilize precision test probes to create reliable contacts and repetitive connections for automated testing. Our EOL solutions integrate manual or automated barcode readers to ensure a smooth, fully tracked testing workflow.
Reach out to Precitronic today to inquire our quality EOL Test Fixtures for your products.

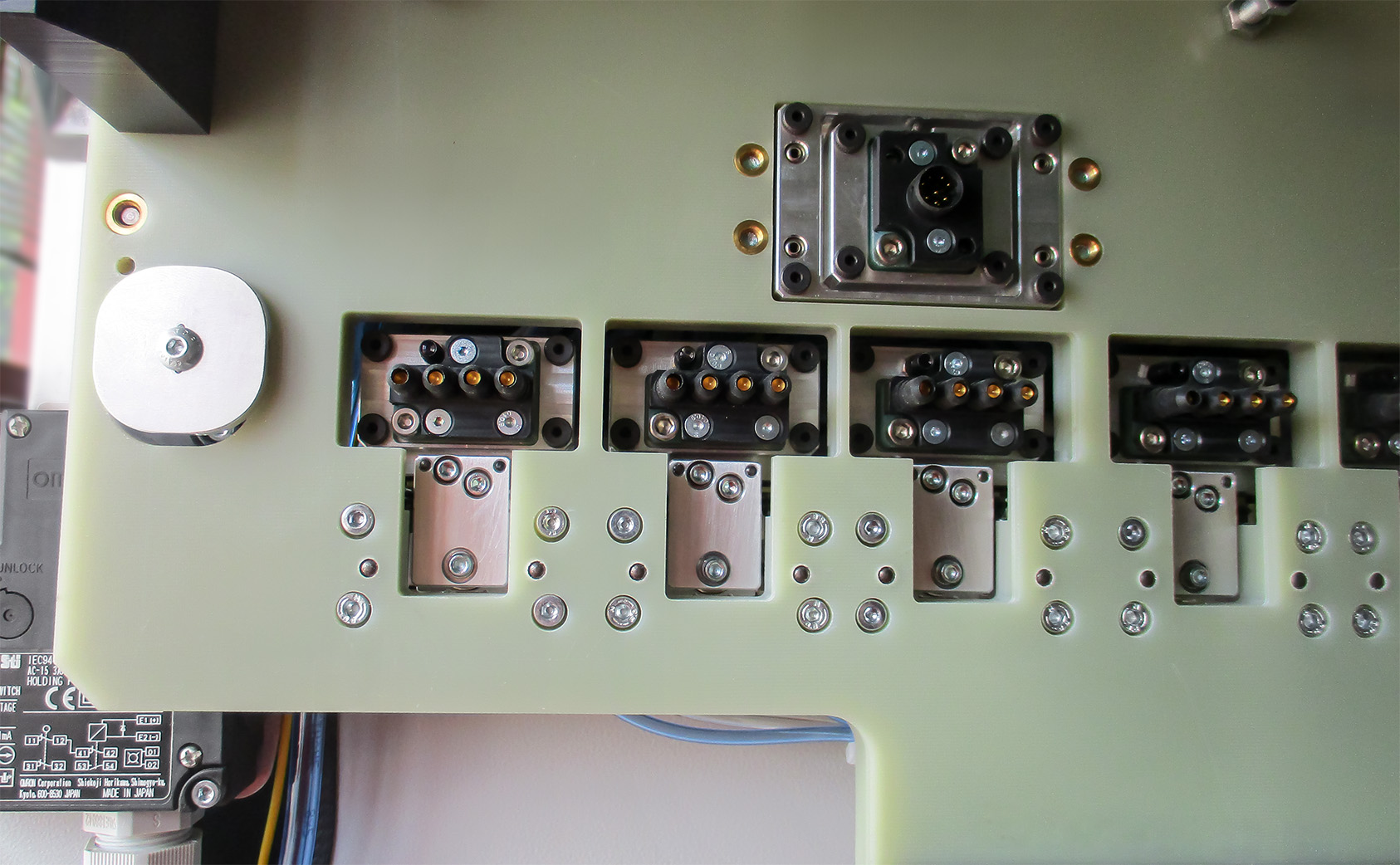

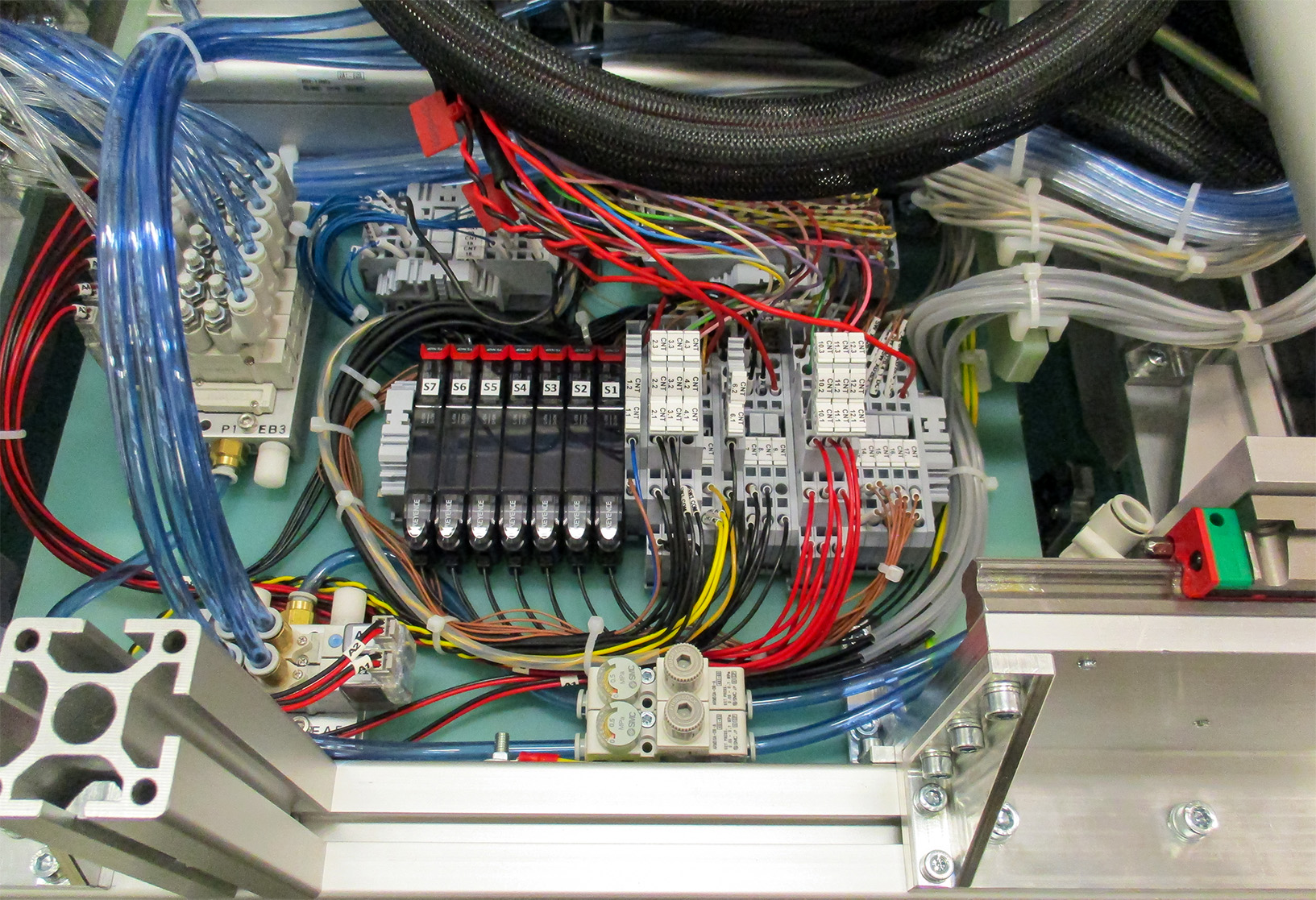

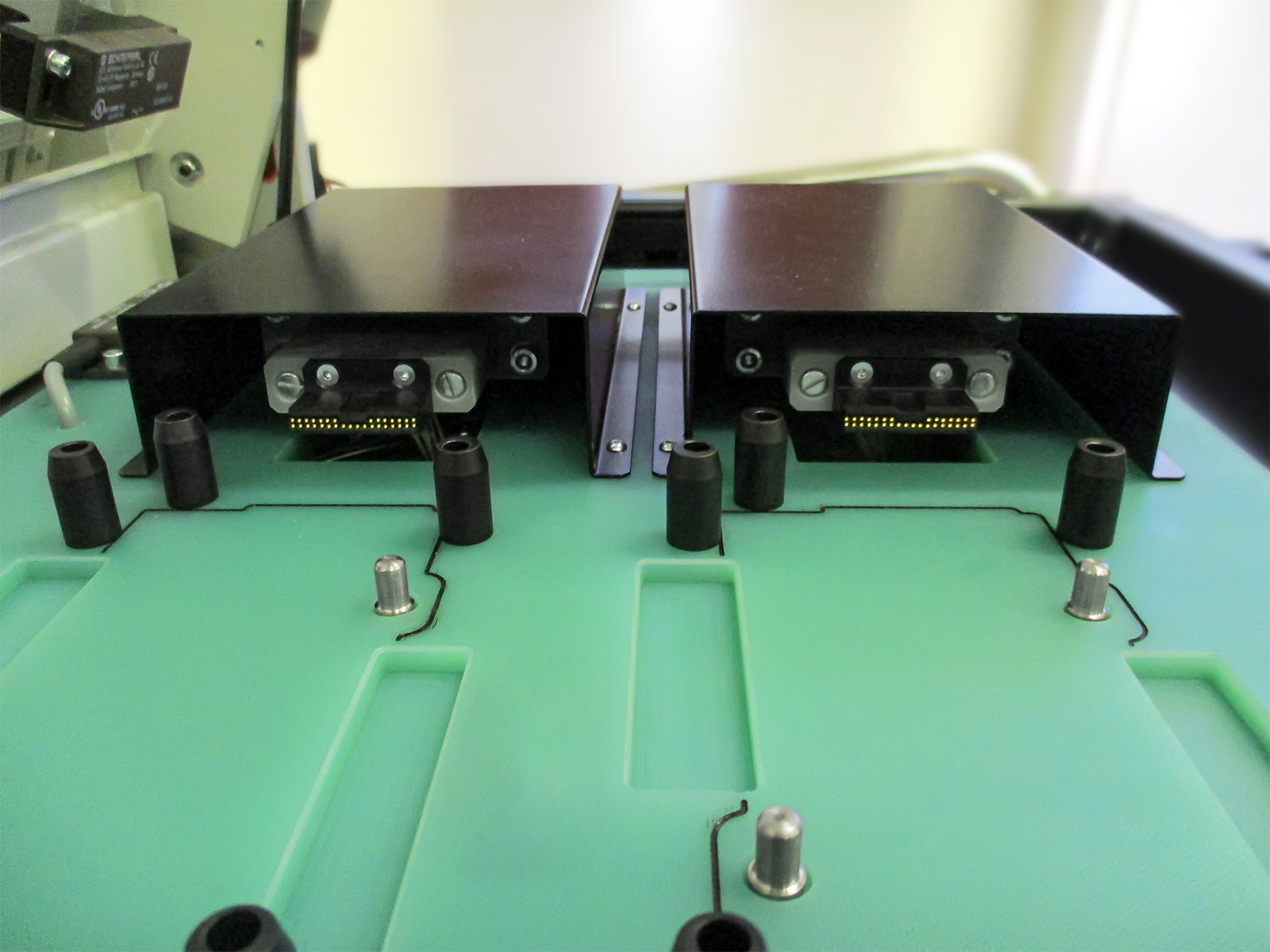

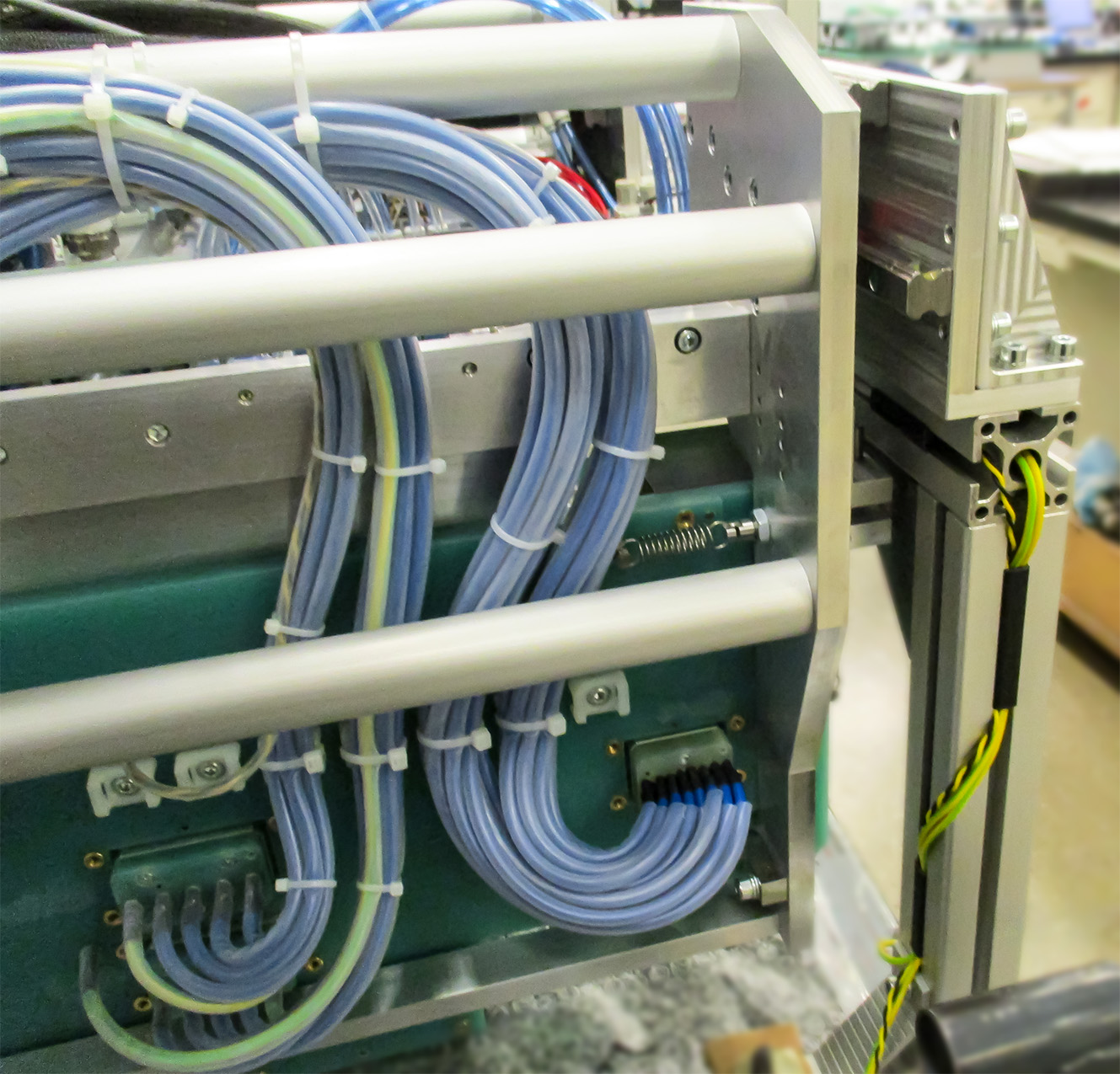

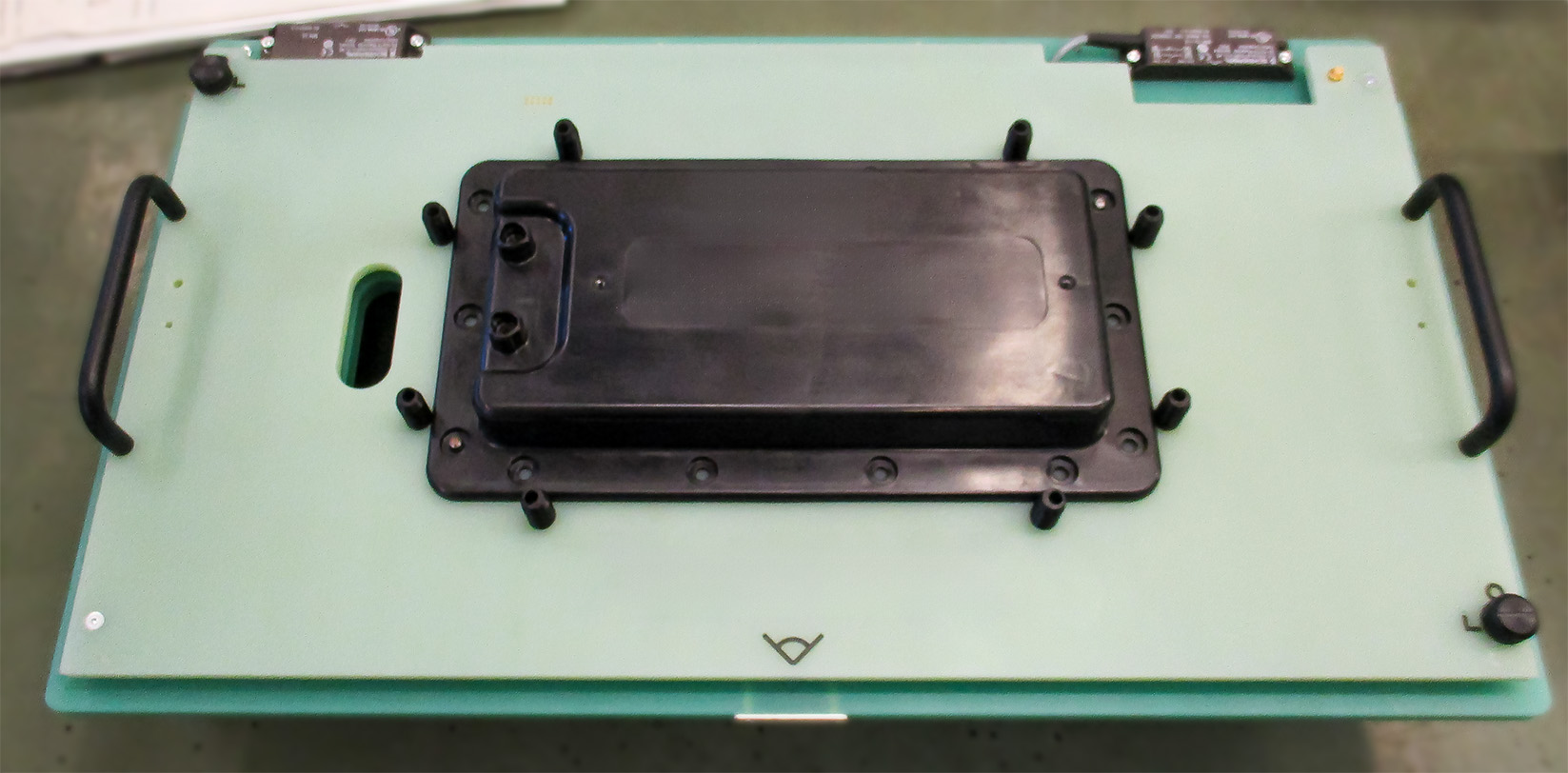

End of Line Fixture Gallery
