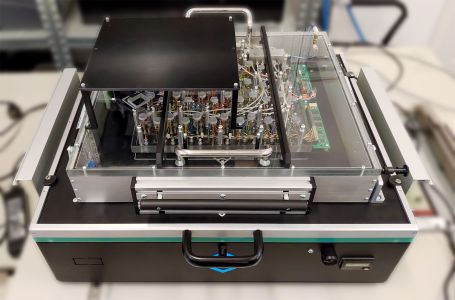

In-Circuit Test Fixtures - ict

ICT (In-Circuit Test) fixtures are precise, custom-engineered tools used in electronics manufacturing to hold populated (loaded) printed circuit boards (PCB’s) in place, while testing for manufacturing defects.

Precision Engineering for "Bed-of-Nails" ICT Test Fixtures

ICT (In-Circuit Test) fixtures are precise, custom-engineered tools used in electronics manufacturing to hold populated (loaded) pointed circuit boards (PCB’s) in place, while testing for manufacturing defects.

Precitronic manufactures customized “Bed-of-Nails” ICT Test Fixtures. We offer complete finishing of in-circuit test fixtures, including high-speed drilling, precision tooling of G10/FR4 Epoxy Glass Plates, with the Bushing (tooling pins) to make sure that all plates in our ICT fixtures are perfectly aligned up to each other. Precitronic SARL uses extremely high-RPM drilling machines, which go up to 200.000 RPM, in order to secure the quality of tiny drilled holes. Our center-to-center drilling accuracy is 0.005 mm (micron), for perfect tooling of the probe plate together with the alignment plate, also called the “moving” plate.

ICT Fixtures Types

keysight

teradyne

genrad

digitaltest

spea

Tri

checksum

seica
