Flash Programming Fixtures – Flash

A Flash Programming Fixture is a high-precision manufacturing tool used to load firmware or software onto microcontrollers and memory chips on a Printed Circuit Board Assembly (PCBA).

Understanding Flash Programming Fixtures

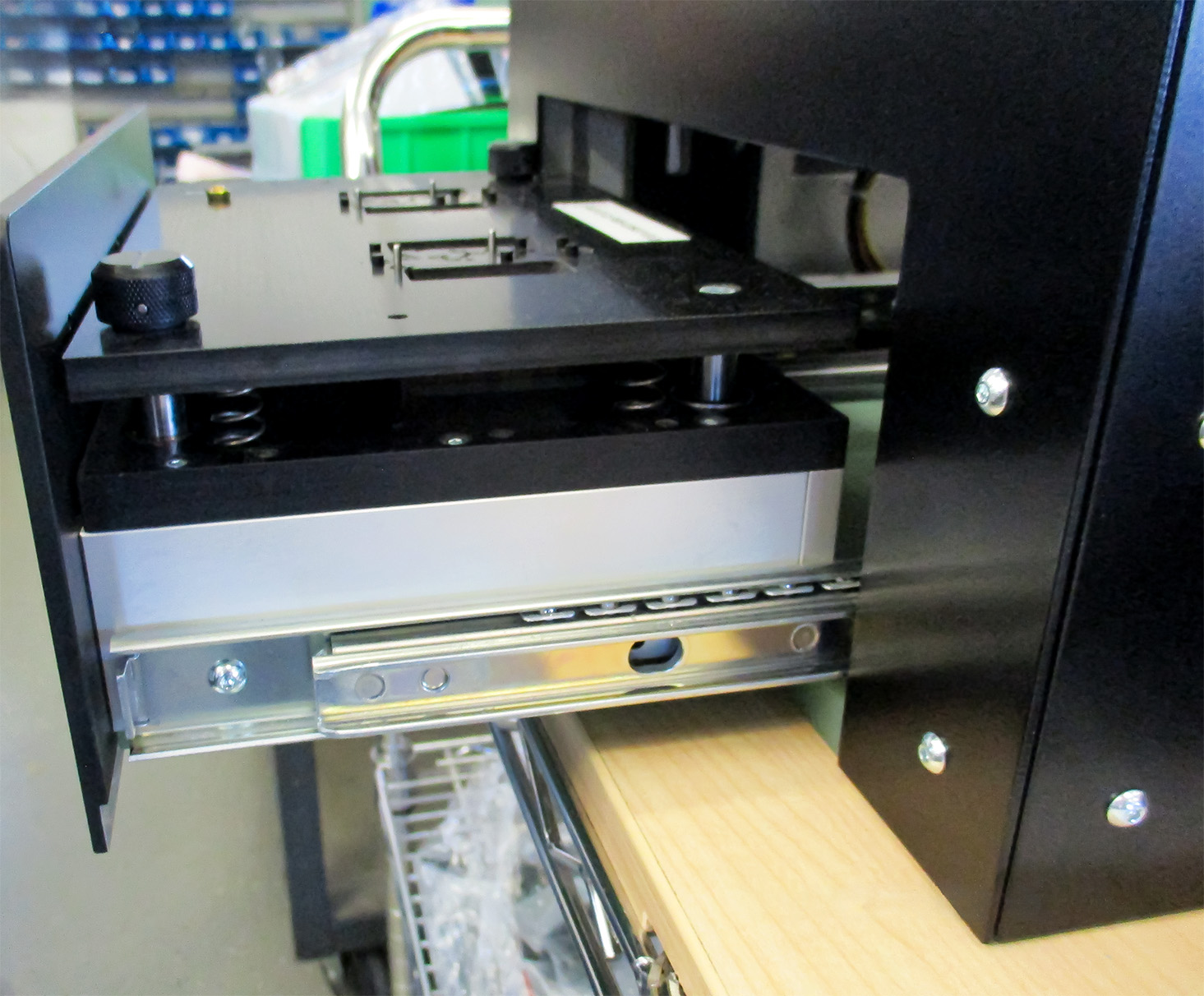

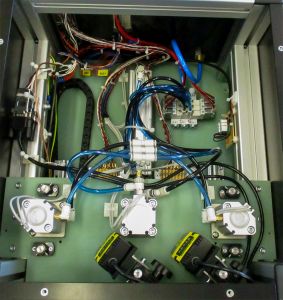

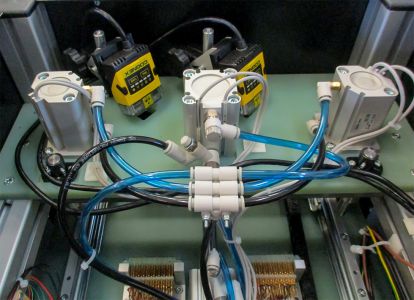

A flash programming fixture of Flashing Test Fixture is a specialized manufacturing device designed to securely hold a printed circuit board (PCB) and interface with its components to quickly and reliably load firmware or software onto micro-controllers, memory chips or other programmable components on a printed circuit board assembly (PCBA). It utilizes test probes (pogo pins) or professional custom designed miniature connector counterparts to connect to interfaces like JTAG or SPI for fast, reliable, and automated In-System Programming (ISP).

These fixtures improve production efficiency, reduce errors, and are commonly used in automotive and consumer electronics industries.

This fixture is used during the testing process to efficiently and accurately program the necessary algorhytm (code) onto these components before they are integrated into the final product. Many times this ISP Programming is performed between different test and assembly steps, depending on corporate and process policies. Typically before or during functional testing.

Many times this ISP Programming is performed between different test and assembly steps, depending on corporate and process policies. Typically before or during functional testing.

Key features and aspects of a flash programming fixture include

Dedicated Custom made Design

Flash programming fixtures are specifically designed to meet the programming needs of the PCB and its components. The design of the fixture precisely positions test probes for programming the DUT (UUT) within the dedicated FLASH test fixture, aiming to enhance programming speed and reduce the rate of programming failures.

Connector Compatibility

The fixture is equipped with connector counterparts, sockets, or pogo pins that align with the programming interfaces (JTAG, SWD, SPI, etc.) on the target components, enabling reliable communication and programming stability.

Programming Algorithms

The Flash fixture may include programming algorithms or scripts that facilitate the programming process, ensuring that the correct firmware or software is programmed onto the components. This is done by integrating reliable In-System Programmer or OEM Programmer devices. All depending on customer wish and technical recommendations from Precitronic Team.

Automation

Flash programming fixtures are typically created for integration into automated production or testing workflows. This facilitates the swift and uniform programming of numerous PCBs. This process is generally accomplished with the assistance of Inline Handlers, which feature interchangeable fixture plates to accommodate various PCBA applications.5. Verification and Testing: Some flash programming fixtures may include verification steps to confirm the successful programming of each component. This ensures that the programming process was completed accurately.

Compatibility and Scalability

Flash programming fixture can be designed to accommodate various PCB sizes, components, and programming interfaces, making them adaptable to different product lines. This could be achieved by untilising interchangrable manual fixture kits. These fixtures are typically a Drop-In Style solutions, where feeding is done by operator or by Robots. Either way is safe and reliable, having their own advantages.

Traceability

These fixtures can include data logging capabilities to record programming results and provide traceability for quality control purposes. Traceability integrations are often required b your customers and this is something we support, when asked so.
