LED Analyser

Streamline your ICT and Functional testing with Precitronic’s integrated Feasa and LEDProbe solutions. We offer precision color measurement and automated light shielding without the need for manual external protection.

Precision LED Analysis with Patented Light Shielding Technology

Precitronic SARL is the official integration, resale, and support partner for Feasa and Equip-Test across Morocco and the African continent. We deliver high-precision, automated measurement solutions for LEDs and LCD displays, tailored for the demanding medical, automotive, and aerospace sectors.

Feasa Analyzers provide fast, user-friendly testing of color, intensity, hue, and saturation. Their flexible design allows for seamless integration into most ATE (Automated Test Equipment) systems.

  • Feasa I – Optimized for ICT (In-Circuit Testing) applications.
  • Feasa F – Dedicated to FCT (Functional Testing) applications.

We offer full integration of these modules directly into your ICT/FCT test fixtures or as standalone system-side solutions.

The LEDProbe Advantage: No "Black Box" Required

To maximize ROI and testing accuracy, we integrate Equip-Test’s patented LEDProbe technology. This innovation solves the most common challenge in LED testing: interference from factory ambient light.

  • Patented Shielding: Spring-loaded LEDProbes perfectly seal the LED, blocking all external light.
  • Undistorted Transfer: Ensures rapid, mistake-free light transfer directly to the analyzer.
  • Simplified Fixture Design: Because the probes shield the light at the source, there is no need for bulky "Black Box" designs or manual internal shielding.

Customized Test Fixtures with Feasa

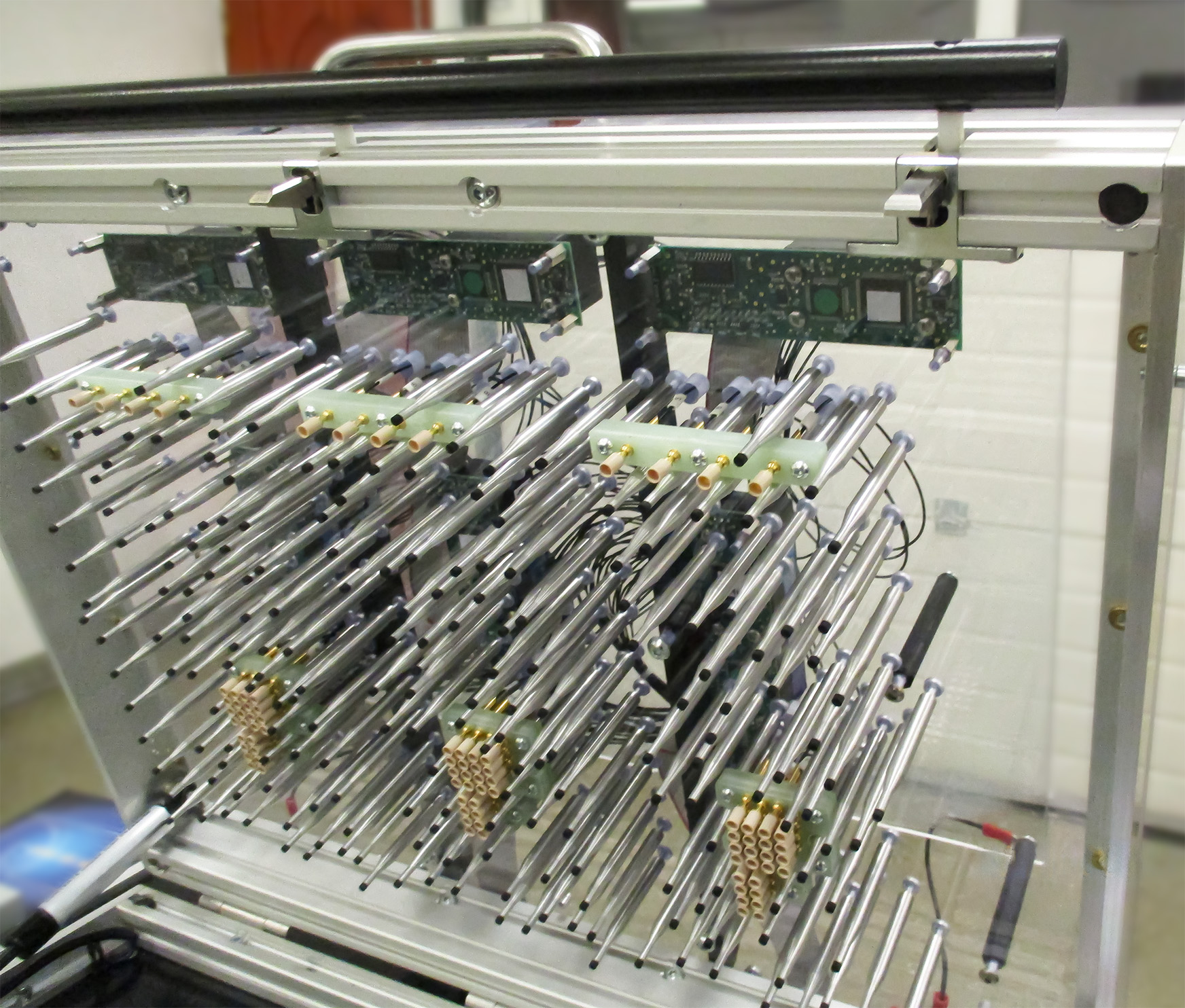

We design and manufacture fully customized Functional, ICT, and Dual-Stage fixtures. By combining Feasa’s analytical power with Equip-Test’s shielding, we provide a streamlined, "easy-to-integrate" solution that ensures high-accuracy results on even the busiest shop floors.

Analyser Types

Functional Analyser

The Feasa F-Series is a versatile, high-speed solution designed for functional testing. Whether you are testing a single indicator or a complex display array, these modules offer the flexibility and precision your production line needs.

  • Scalable Channels: Available in 3, 5, 6, 10, and 20-channel configurations to fit any project size.
  • Expandable System: Use the Daisy Chain capability to connect up to 30 analysers at once.
  • Compact Design: Small footprint (as small as 86 x 57 x 50mm) makes it easy to integrate into existing test fixtures.
  • Durable Optics: Each channel features a 0.6m fiber optic cable with a tight 10mm bend radius for easy routing.
  • Wavelength Range: 450nm – 650nm (Visible Spectrum).
  • Operating Temp: 0°C to 50°C.
  • Interfaces: High-speed USB, Serial (RS232), and Daisy Chain.
  • Data Output: Get full details on RGB, Hue, Saturation, Intensity (HSI), Dominant Wavelength, CCT, and CIE coordinates (xy and u'v').
  • Software Support: Includes DLLs for easy automated testing.
  • Coding Examples: Get up and running fast with programming samples for Labview and C++.
  • 20F, 10F, 6F, 5F, 3F: Choose the model that matches your channel requirements

In Circuit Test Analyser

The Feasa I-Series is specifically engineered for seamless integration into In-Circuit Test (ICT) environments. Designed for stability and speed, it allows you to test LED functionality simultaneously with electrical components, maximizing your throughput.

  • Flexible Channel Options: Choose from 3, 5, 6, 10, or 20-channel configurations to match your board density.
  • Seamless Communication: Connect easily via RS232 or a specialized 20-pin Addressable Port.
  • Instant Response: Includes External Triggering capabilities, allowing the unit to capture data precisely when your test event occurs.
  • Space-Saving Profile: A slim design (starting at just 100 x 29 x 50mm) ensures it fits perfectly within tight ICT fixture footprints.
  • Precision Optics: Features 0.6m fiber optic cables with a 10mm bend radius for versatile routing around test probes.
  • Wavelength Range: 450nm – 650nm.
  • Operating Temp: 0°C to 50°C.
  • Data Output: Get full details on RGB, Hue, Saturation, Intensity (HSI), Dominant Wavelength, CCT, and CIE coordinates (xy and u'v').
  • Ready-to-Use Models: Specific support for Agilent i3070.
  • Standard Test Code: Pre-written routines for Teradyne systems.
  • Software Toolkit: Includes DLLs and programming examples for Labview and C++.
  • 20i, 10i, 6i, 5i, 3i: Tailored for ICT-specific hardware interfaces.

Infrared Analyser

The Feasa IR Series is the premier solution for measuring the wavelength and relative power of Infrared LEDs. It is specifically engineered for high-stakes environments like Automotive safety systems, Security sensors, and Surveillance technology.

  • Scalable Sensing: Available in 3, 10, and 20-channel configurations to suit your testing volume.
  • Expandable Network: Features Daisy Chain functionality, allowing you to link multiple units together for large-scale arrays.
  • High-Speed Interface: Connect via USB or RS232 for rapid data acquisition.
  • Fiber Flexibility: Choose between Glass (IR) or Plastic (IRP) fibers depending on your specific wavelength and durability needs.
  • Wavelength Range: 700nm – 950nm (Glass Fiber) and 700nm – 900nm (Plastic Fiber).
  • Operating Temp: 0°C to 50°C.
  • Industry-Leading Repeatability: Achieve consistent results with wavelength accuracy of <1nm and intensity stability of <1%.
  • Integration Ready: Includes standard DLLs for automated test environment
  • Coding Examples: Comprehensive programming samples provided for Labview and C++.
  • 700nm – 750nm: ±30nm
  • 751nm – 900nm: ±10nm (High Precision Range)
  • 901nm – 950nm: ±20nm
  • 20IR, 10IR, 3IR: Glass Fiber (700–950nm)
  • 20IRP, 10IRP, 3IRP: Plastic Fiber (700–900nm)

Low Light Analyser

The Feasa Low Light Series is a specialized solution designed for the delicate task of measuring LEDs behind etched or painted plastic panels. It is the industry standard for testing car dashboards, backlit switches, and instrument clusters where light uniformity and color accuracy are critical.

  • Ideal for Backlit Displays: Perfectly tuned to measure light traveling through various panel materials with high sensitivity.
  • Comprehensive Metrics: Accurately tests for Intensity, Homogeneity, xy Chromaticity, Dominant Wavelength, and CCT.
  • Flexible Channel Options: Available in 3, 5, 6, and 10-channel configurations to match your panel layout.
  • High-Sensitivity Optics: Features 0.6m fibers with a 2.2mm diameter and a 35mm bend radius, optimized for low-luminance capture.
  • Luminance Range: Measures from a minimum of 0.5 cd/m2 up to 1000 cd/m2
  • Exceptional Accuracy: Precise to ±0.01 at x=0.33,y=0.33.
  • Rock-Solid Repeatability: Maintains ±0.002 on color and <1% on intensity for consistent production quality.
  • Operating Temp: 0°C to 50°C.
  • Available Interfaces: High-speed USB, Serial (RS232), and Daisy Chain for multi-unit setups.
  • Software Toolkit: Includes dedicated setup software and a command-line interface.
  • Developer Support: Full support for DLL, Labview, C, and C++ with provided programming samples.
  • 10A, 6A, 5A, 3A: Designed for high-accuracy automotive and panel applications).

High Brightness Analyser

The Feasa High Brightness Series is the heavy-duty solution for the next generation of automotive lighting. Specifically developed for Matrix Headlights and high-intensity lighting systems, this analyser excels in high-power production environments where precision and heat management are key.

  • Ultra-Fine Resolution: Capable of testing individual LEDs positioned as close as 1.1mm center-to-center—perfect for dense LED matrices.
  • Dual-Application Support: Available in two specialized versions to fit your workflow:
    Functional (FB): For final assembly and functional verification.
    In-Circuit Testing (IB): For component-level testing during the PCB assembly phase.
  • Scalable Configurations: Available in 3, 5, 10, and 20-channel models to handle everything from single beams to full headlight arrays.
  • Versatile Interfaces: Equipped with USB, Serial (RS232), and Daisy Chain support for linking multiple units.
  • Streamlined Setup: Comes with dedicated setup software to get your line running quickly.
  • Developer Ready: Full support for DLL, Labview, C, and C++ with a sample command-line interface for custom integration.
  • 20FB, 10FB, 5FB, 3FB: Functional Models
  • 20iB, 10iB, 5iB, 3iB: ICT Models

Feasa Legend Analyser

The Feasa Legend is the ultimate system for applications with high LED counts. By utilizing a modular "Hub and Satellite" architecture, it provides a scalable, efficient way to test massive arrays concurrently without sacrificing speed or accuracy.

  • The Hub & Satellite Design: The system is comprised of two parts—a central Hub and multiple Satellite Analysers.
  • Massive Capacity: One Hub can control up to 8 Satellite Analysers. Since each Satellite tests 20 LEDs, a single fully-populated system can test up to 160 LEDs simultaneously.
  • Flexible Mounting: The Hub is compact enough to be mounted directly within the Test Station or inside the Test Fixture itself.
  • Stable, High-Speed Readings: Delivers consistent results across all common color spaces, including Hue, Saturation, Intensity (HSI), Dominant Wavelength, CCT, and CIE xy Chromaticity.
  • Wide Spectrum: Operating wavelength range of 450nm – 650nm.
  • Precision Fiber Optics: Each channel uses a 0.6m fiber with a 1.0mm diameter and a tight 10mm bend radius, allowing for clean routing in dense fixtures.
  • Operating Temp: 0°C to 50°C.
  • Legend Hub: 130 x 55 x 30mm
  • Legend Analyser (Satellite): 120x29x50mm
  • Efficient Programming: Feasa provides a suite of programs designed to optimize the efficiency of the Legend system.
  • Developer Ready: Full support via DLLs with programming examples for Labview and C++.
  • Comprehensive Output: Provides RGB, HSI, Dominant Wavelength, CCT, CIE xy, and CIE u’v’ data depending on your chosen interface.
  • Legend Hub: The central controller.
  • Legend 20L / 10L: Satellite Analysers (20-channel or 10-channel versions).

RGB Analyser

The Feasa RGB LED Analyser was designed for measuring RGB LEDs, RGB LED backlit switches and panels where the light is travelling through etched or painted plastic panelling; such as on car dashboards.

  • Master of Color Mixing: Optimized for RGB LEDs to ensure perfect color balance across the entire display.
  • Comprehensive Visual Testing: Accurately measures Intensity, Homogeneity, xy Chromaticity, Dominant Wavelength, and CCT.
  • High-Sensitivity Optics: Equipped with 0.6m polished fibers (2.2mm diameter) designed to capture light accurately through complex paneling.
  • Flexible Channel Options: Available in 3, 5, 6, and 10-channel configurations to match your specific UI layout.
  • Luminance Range: Reliable performance from a minimum of 0.5 cd/m2 up to 1000 cd/m2.
  • Unmatched Accuracy: Precise to ±0.01 for both monochromatic and RGB colors.
  • Industrial Reliability: Maintains a repeatability of ±0.002 with <1% intensity variance.
  • Operating Temp: 0°C to 50°C.
  • Standard Interfaces: Includes USB, Serial (RS232), and Daisy Chain for multi-unit synchronization.
  • Setup Made Easy: Dedicated setup software and a sample command-line interface are included.
  • Full Integration: Comprehensive support for DLL, Labview, C, and C++.
  • 10-RGB, 6-RGB, 5-RGB, 3-RGB: Tailored for high-precision color-mixing applications.
