Vacuum Fixture

Vacuum Fixture Description

KEYSIGHT - AGILENT - HP 3070

VFS-E90-2ST-HP3070-VC09

Its key features include a usable area of 248 x 258 mm and a vacuum cover for secure contact. The fixture supports multiple cover types, including mechanical, vacuum, and dual-stage, and has different installation heights for test probes depending on the test type (21.3 mm for FCT and 16 mm for ICT). It also features Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 495 x 467 x 203 [mm]
      19.488 x 18.386 x 7.992 [in]
  • Usable Area:
    • 248 x 258 [mm]
      9.763 x 10.158 [in]
  • The Fixture includes a vacuum cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Dual Stage
  • Installation height test probe bottom:
    • FCT- 21.3 mm / ICT-16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

KEYSIGHT - AGILENT - HP 3070

VFS-E90-HP3070

Its key features include a usable area of 320 x 400 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include one. The installation height for bottom test probes is 16 mm, and it is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 495 x 467 x 87 [mm]
      19.488 x 18.386 x 3.425 [in]
  • Usable Area (not DUT size):
    • 320 x 400 [mm]
      12.598 x 15.748 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

KEYSIGHT - AGILENT - HP 3070 - DOUBLE - BANK

VFS-E90-HP 3070

Its key features include a spacious usable area of 680 mm by 400 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 857 x 465 x 93 [mm]
      33.740 x 18.307 x 3.661 [in]
  • Usable Area (not DUT size):
    • 680 mm x 400 [mm]
      26.772 in x 15.748 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

KEYSIGHT - AGILENT - HP 3070

VFT-E91-HP 3070

Its key features include a usable area of 200 mm by 380 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 595 x 465 x 87 [mm]
      23.425 x 18.307 x 3.425 [in]
  • Usable Area (not DUT size):
    • 200 x 380 [mm]
      7.874 in x 14.960 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE - GENRAD - SPECTRUM

VFS-E3-SPECTRUM 88XX-SL

Its key features include a spacious usable area of 480 mm by 350 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 674 x 532 x 158 [mm]
      26.535 x 20.944 x 6.220 [in]
  • Usable Area (not DUT size):
    • 480 x 350 [mm]
      18.898 x 13.780 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE - GENRAD - 15/15 - DUAL STAGE WITH VACUUM COVER

VFS-E3-2ST-TSLH-15/15-VC10

The fixture has a usable area of 354 x 234 mm and includes a vacuum cover for secure and reliable contact. It also supports different probe installation heights on the bottom, with 21.3 mm for FCT (functional circuit testing) and 16 mm for ICT (in-circuit testing), making it a versatile tool for various testing methodologies. Additionally, it features Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 661 x 517 x 296 [mm]
      26.023 x 20.354 x 11.653 [in]
  • Usable Area:
    • 354 x 234 [mm]
      13.937 x 9.212 [in]
  • The Fixture includes a vacuum cover
  • Usable Cover Types:
    • Vacuum
  • Dual Stage
  • Installation height test probe bottom:
    • FCT- 21.3 mm / ICT-16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE - GENRAD - 15 / 15

VFS-E3-TSLH-15/15

Its key features include a spacious usable area of 350 mm by 380 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 661 x 517 x 175 [mm]
      26.023 x 20.354 x 6.890 [in]
  • Usable Area (not DUT size):
    • 350 x 380 [mm]
      13.779 x 14.960 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE - GENRAD - 18 / 18

VFS-E2-TS121-18/18

Its key features include a spacious usable area of 420 x 380 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 678 x 515 x 175 [mm]
      26.693 x 20.276 x 6.890 [in]
  • Usable Area (not DUT size):
    • 420 x 380 [mm]
      16.535 x 14.960 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE - GENRAD - 33 / 33

VFS-E4-TS121-33/33

Its key features include a spacious usable area of 600 mm by 380 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 875 x 515 x 175 [mm]
      34.449 x 20.276 x 6.890 [in]
  • Usable Area (not DUT size):
    • 600 x 380 [mm]
      23.622 x 14.960 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

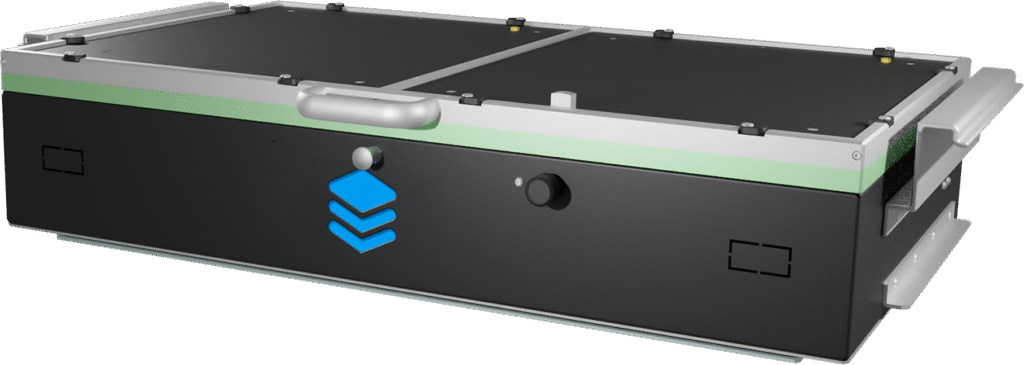

TERADYNE - GENRAD - 33 / 33

VFT-E4-TS121-33/33

Its key features include a usable area of 320 x 300 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include one. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 875 x 515 x 175 [mm]
      34.449 x 20.276 x 6.890 [in]
  • Usable Area (not DUT size):
    • 320 x 300 [mm]
      12.598 x 11.811 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

DIGITALTEST MTS 300

VFS-E14-DT-MTS300

Its key features include a spacious, square usable area of 420 x 420 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself doesn't include one. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 663 x 515 x 201 [mm]
      26.102 x 20.276 x 7.914 [in]
  • Usable Area (not DUT size):
    • 420 x 420 [mm]
      16.535 x 16.535 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

MARCONI - AEROFLEX

VFS-E2-MC4200 4210

Its key features include a spacious usable area of 370 mm by 380 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 607 x 544 x 148 [mm]
      23.898 x 21.417 x 5.827 [in]
  • Usable Area (not DUT size):
    • 370 mm x 380 [mm]
      14.567 x 14.961 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

MARCONI - AEROFLEX

VFT-E2-MC4200 4210

Its key features include a usable area of 160 mm by 360 mm and the ability to support both mechanical and vacuum cover types, though the fixture itself does not include a cover. The installation height for bottom test probes is 16 mm, and the fixture is equipped with Alum-A-Grip Handles for easy transport.

  • External Dimension (width x depth x height) with Handles:
    • 607 x 544 x 144 [mm]
      23.898 x 21.417 x 5.669 [in]
  • Usable Area (not DUT size):
    • 160 mm x 360 [mm]
      6.299 x 14.173 [in]
  • The Fixture doesn’t include a cover
  • Usable Cover Types:
    • Mechanical
    • Vacuum
  • Installation height test probe bottom:
    • 16 mm
  • Alum-A-Grip Handles for transport and lift

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form
