In-Line Fixture

In-Line Fixture Description

TRI - TR5001 SERIES II - QDI

ILFS-TR5001-SII-QDI-ITA-22

Its key features include the ability to test a wide range of DUT (Device Under Test) sizes, from a minimum of 70 x 70 mm up to a maximum of 450 x 300 mm for a single board. It supports both top and bottom testing, with an installation height of up to 16 mm for test probes on both sides, and has a high capacity, supporting a maximum of 4096 test channels.

  • External Dimension (width x depth x height) with Handles:
    • 538 x 478 x 286 [mm]
      21.18 x 18.81 x 11.26 [in]
  • DUT sizes:
    • 1 PCB 70 x 70 [mm] to maximum 450 x 300 [mm]
      2.75 x 2.75 [in] to maximum 17.71 x 11.81 [in]
    • 2 PCB 70 x 70 [mm] to maximum 200 x 300 [mm]
      2.75 x 2.75 [in] to maximum 7.87 x 11.81 [in]
      • In case of the TOP test the max. DUT size to be clarified.
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 4096 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TRI - TR5001 SERIES II - POGO

ILFS-TR5001 SII-POGO-36

Its key features include the ability to handle a wide range of DUT (Device Under Test) sizes, from a minimum of 70 x 70 mm up to a maximum of 500 x 360 mm. The fixture supports both top and bottom testing with a probe installation height of 16 mm on each side, and has a high capacity, capable of accommodating a maximum of 4096 test channels.

  • External Dimension (width x depth x height) with Handles:
    • 568 x 533 x 310 [mm]
      22.36 x 21 x 12.2 [in]
  • DUT sizes:
    • 70 x 70 [mm] to maximum 500 x 360 [mm]
      2.75 x 2.75 [in] to maximum 19.68 x 14.13 [in]
      • In case of the TOP test the max. DUT size to be clarified.
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 4096 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

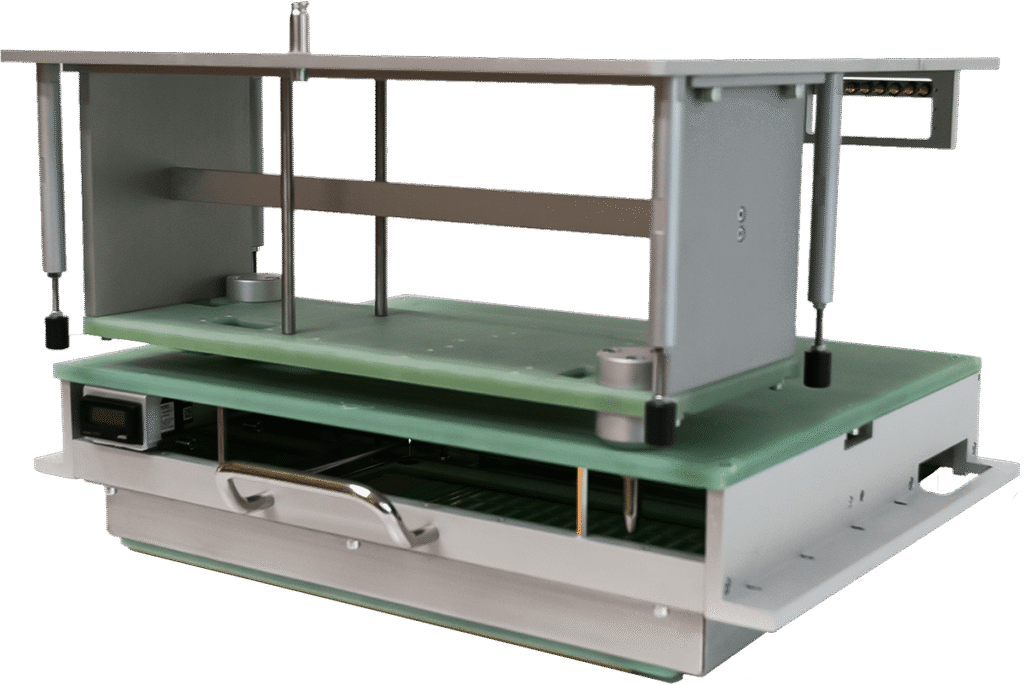

TERADYNE 18 SLOT

ILFS-TER18SL

Its key features include a broad range of supported DUT (Device Under Test) sizes, from a minimum of 50 x 40 mm to a maximum of 420 x 254 mm. The fixture supports both top and bottom testing, with a probe installation height of 16 mm on each side, and has a high capacity, capable of accommodating a maximum of 2984 test channels.

  • External Dimension (width x depth x height) with Handles:
    • 531 x 465 x 366 [mm]
      20.91 x 18.30 x 14.40 [in]
  • Max DUT size:
    • 420 x 254 [mm]
      16.53 x 10.00 [in]
  • Min DUT size:
    • 50 x 40 [mm]
      1.97 x 1.57 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2984 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

TERADYNE MULTI-SITE TSH-5X

ILFS-TSH-5SLOT

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 349 mm x 450 mm. The fixture is capable of performing both top and bottom testing with a probe installation height of 16 mm on each side, and has a high capacity, supporting a maximum of 2x 2560 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 640 x 494 x 292 [mm]
      25.20 x 19.45 x 11.50 [in]
  • Max DUT size:
    • 349mm x 450 [mm]
      13.74 x 17.72 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2x 2560 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

KEYSIGHT - AGILENT i1000D SERIES

ILFS-i1000D

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 430 x 300 mm. The fixture is capable of performing both top and bottom testing, with a different probe installation height on each side—16 mm on the bottom and 20.5 mm on the top—and has a high capacity, supporting a maximum of 3456 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 470 x 395 x 256 [mm]
      18.50 x 15.55 x 10.10 [in]
  • Max DUT size:
    • 430 x 300 [mm]
      16.93 in x 11.81 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-20.5 mm
  • Maximum 3456 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

KEYSIGHT - AGILENT i3070 SERIES 5i

ILFS-i3070-5i

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 350 x 349 mm. The fixture is capable of performing both top and bottom testing with a probe installation height of 16 mm on each side, and has a high capacity, supporting a maximum of 2592 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 565.2 x 402.6 x 252 [mm]
      22.25 x 15.85 x 9.92 [in]
  • Max DUT size:
    • 350 x 349 [mm]
      13.78 in x 13.74 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2592 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

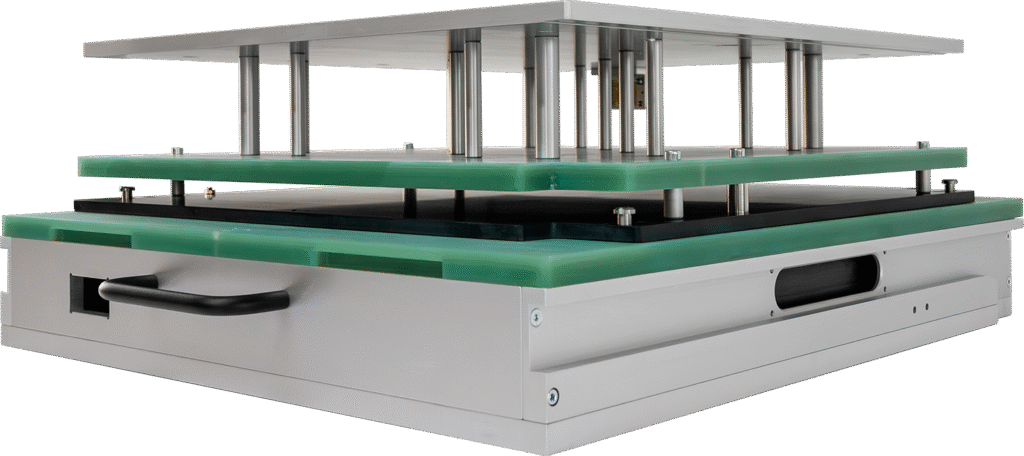

KEYSIGHT i7090 BOARD TEST

ILFS-i7090

Its key features include a wide range of supported board sizes, handling boards from a minimum of 50 x 50 mm up to a maximum of 460 x 430 mm. The fixture is capable of performing both top and bottom testing, with a consistent probe installation height of 16 mm on both sides, and it supports a high capacity of up to 2560 channels for conducting detailed and complex tests.

  • External Dimension (width x depth x height) with Handles:
    • 480 x 597 x 212 [mm]
      18.90 x 23.50 x 8.35 [in]
  • Max Board size:
    • 460 x 430 [mm]
      18.11 x 16.93 [in]
  • Min board size:
    • 50 x 50 [mm]
      1.97 x 1.97 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2560 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

INLINE SPEA 3030

ILFS-2A-SPEA3030-BOT44x72-D

Its key features include the ability to perform both top and bottom testing, with an installation height of up to 16 mm for test probes on both sides. The fixture has a very high channel count, supporting a maximum of 6336 channels, which makes it suitable for comprehensive testing of complex PCBs.

  • External Dimension (width x depth x height) with Handles:
    • 630 x 730.5 x 247 [mm]
      24.80 x 28.76 x 9.72 [in]
  • DUT size to be clarified
  • Top and Bottom test
  • Installation height of test probes with receptacles:
    • bottom-16 mm
    • top-16 mm
  • Maximum 6336 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

INLINE SPEA 3030 FOR IPTE HANDLER

ILFS-SPEA-3030

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 175 mm by 330 mm, with one dimension being fixed and the other variable. The fixture supports both top and bottom testing, with an installation height of up to 16 mm for test probes on both sides, and has a high capacity, supporting a maximum of 2048 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 479 x 662 x 436 [mm]
      18.86 x 26.06 x 17.16 [in]
  • Max DUT size:
    • 175 mm (fix) x 330 mm (variable)
      6.89 in x 13.00 in
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2048 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

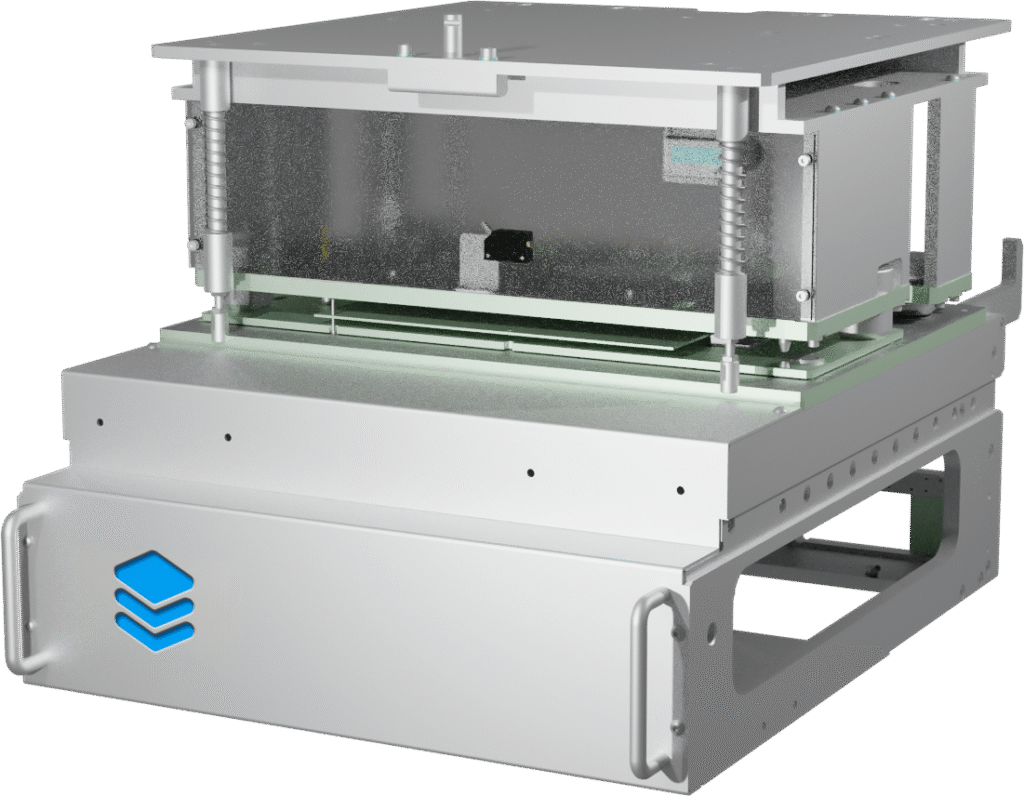

INLINE SPEA 3030 FOR IPTE HANDLER

ILFS-2A-SPEA-3030

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 175 mm by 330 mm, with one dimension being fixed and the other variable. The fixture supports both top and bottom testing, with an installation height of up to 16 mm for test probes on both sides, and has a high capacity, supporting a maximum of 2048 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 479 x 662 x 436 [mm]
      18.86 x 26.06 x 17.16 [in]
  • Max DUT size:
    • 175 mm (fix) x 330 mm (variable)
      6.89 in x 13.00 in
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2048 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

INLINE SPEA 3030 - 190 FOR IPTE HANDLER

ILFS-2A-SPEA-3030-190

Its key features include the ability to handle a maximum DUT (Device Under Test) size of 190 mm by 330 mm, with one dimension being fixed and the other variable. The fixture supports both top and bottom testing, with an installation height of up to 16 mm for test probes on both sides, and has a high capacity, supporting a maximum of 2048 channels for comprehensive testing.

  • External Dimension (width x depth x height) with Handles:
    • 479 x 662 x 436 [mm]
      18.86 x 26.06 x 17.16 [in]
  • Max DUT size:
    • 190 mm (fix) x 330 mm (variable)
      7.48 in x 13.00 in
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 2048 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form

INLINE FIXTURE FOR 6 TL HANDLER WITH VPC G25

ILFS-6TL-VPC-G25

Its key features include a usable testing area of 410 x 384 mm and the capability to perform both top and bottom testing. The fixture supports a consistent probe installation height of 16 mm on both the top and bottom sides, and it has a maximum capacity of 640 channels for conducting a comprehensive range of tests.

  • External Dimension (width x depth x height) with Handles:
    • 456 x 411 x 270.4 [mm]
      17.95 x 16.18 x 10.64 [in]
  • Useable Area:
    • 410 x 384 [mm]
      16.14 x 15.12 [in]
  • Top and Bottom test
  • Installation height test probe:
    • bottom-16 mm
    • top-16 mm
  • Maximum 640 channels

Fill out the form
to download the datasheet

Request a quote
for our product with direct email

Request a quote
for our product with a form
